SoluForce Hydrogen Tight (H2T)

Unique in the world of hydrogen transport and a global first.

SoluForce has developed a spoolable Reinforced Thermoplastic industrial Piping system (RTP, also known as FCP) for hydrogen applications. The SoluForce FCP has been certified for hydrogen applications up to 52 bar of operating pressure. Unique in the world of hydrogen transport and a global first. With a significantly lower CO2 eq. footprint compared to alternatives, this ready to use pipeline solution has a major impact on the feasibility of (green) hydrogen and a sustainable energy mix.

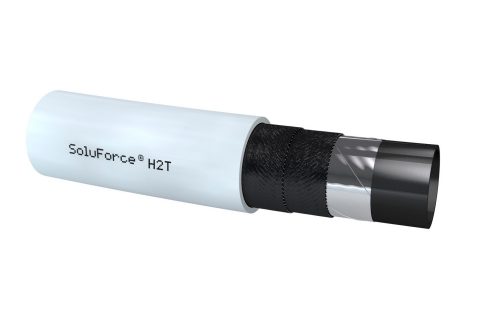

SoluForce 3D Render H2T

Benefits of the SoluForce Hydrogen Tight (H2T)

  • Certified for hydrogen applications of up to MOP 52 bar/ 754 psi, at maximum operating temperature of 65°C
  • Based on proven and excisting technologies
  • The only Flexible Composite Pipe for hydrogen applications available today
  • Quick and easy to install

For hydrogen specifically, the main advantages are:

The SoluForce Hydrogen Tight system has many benefits, that are the same as other SoluForce versions.

The pipe features a uniquely manufactured bonded aluminum layer, preventing hydrogen from permeating out of the SoluForce H2T pipe. Resulting in the industries only completely Hydrogen Tight Reinforced Thermoplastic Pipe (or RTP) system. Therefore it eliminates possible health, safety and environmental issues. The pipe is reinforced with aramid fibre, and the inside and outside layers are made of a non-corrosive HDPE. No special treatment is needed, thus reducing installation and mainte­nance costs.

With the certified maximum operating pressure of 52 bar, the SoluForce H2T pipe is perfectly suited to be connected to hydrogen electrolizers, that usually operate at around 30 bar.

SoluForce Hydrogen Tight (H2T) has the same characteristics as the Classic version. Hydrogen Tight version is available for SoluForce Classic.

Main advantages

  • Operating pressure of up to 52 bar
  • No permeation
  • Re-usable
  • Non-metallic fitting system

Main advantages compared to steel

  • No corrosion and hydrogen embrittlement
  • Up to 4x lower CO2 eq. footprint
  • Fully flexible
  • Easy and quick to install

SoluForce Benefits: This is why! A selection of the most important benefits of the SoluForce system.

SoluForce Factory

Service and Support

SoluForce fittings and connectors are easy to install and need only limited crew and equipment. Installations can be supported by a SoluForce technician or a local contractor can be trained to install the system.

SoluForce Maintenance Free

Qualifications and certifications

The SoluForce system has a solid track record in the oil and gas industry and has been in use since 2000 for a variety of applications. All SoluForce solutions comply with international standards, certified by the world's leading testing bodies.
